The LR Series represents the latest advancement in modular design, seamlessly integrating the proven structural integrity of our flagship line. Its core features include zero on-site assembly, exceptional thermal regulation across varying temperatures, and superior sound insulation.
Experience the next generation of modular construction technology. The LR Series comprehensively resolves the industry-wide challenges of high labor costs and structural compromises. With precision factory prefabrication, outstanding thermal and acoustic performance, and a design philosophy that maximizes both space utilization and aesthetics, LR modular homes deliver an unparalleled return on investment for the tourism sector.
Furthermore, it offers a viable solution to global housing shortages. Addressing the pain points prevalent in developed nations—such as expensive labor, slow construction speeds, and difficult approval processes—LR products are delivered fully move-in ready. This allows for the rapid expansion of housing supply to effectively alleviate residential pressures.
Tel / Whatsapp:+86 18001125785 Email:chengdong@cdph.com.cn
Online Consultation
"Focusing on the high-end demands of residential, commercial, and office sectors, we have launched the LR Series. This product strikes a balance between innovation, practicality, and user experience to create diverse spatial layouts. It features flexible modular and personalized designs that cater to the needs of various scenarios."
01
"Unlike traditional models, the LR arrives fully assembled and finished. This design significantly reduces the labor and time typically required for on-site assembly, ensuring a seamless installation process."
02
"The LR features a fully welded main structure and roof made of 3.0mm SGH340 galvanized steel. It is engineered to withstand a roof live load of ≥1.0 kN/m² and a wind load of ≥120 kg/m². With superior waterproofing and excellent sound insulation, the LR creates a quiet and secure environment for use."
03
"We construct the walls using polyurethane (PU) foam with a U-value of approximately 0.30 W/(m²·K), and incorporate fiberglass insulation for the roof and floor, which has a U-value of around 0.40 W/(m²·K). This balanced design ensures superior temperature control while maintaining excellent cost-effectiveness."
04
"With expert craftsmanship and carefully selected materials optimized for their intended environments, we ensure our products deliver exceptional structural strength and longevity across diverse conditions—from scorching heat to extreme cold. We also provide tailored solutions designed specifically for your unique projects."
05
"In stark contrast to the industrial style of traditional shelters, the LR features concealed piping and electrical systems, unique finishes, and meticulously planned furniture layouts. Together, these elements create an elegant, modern, and comfortable ambiance."
Product Type
"This is a standardized product featuring standard modular dimensions. With an entire housing unit as its basic element, it can be used individually but is not designed for high-rise stacking."
Unit Specifications
Standard Product:
Unit Length: 5800mm (Internal clear dimension: 5640mm)
Unit Width: 2250mm (Internal clear dimension: 2090mm)
Unit Height: 2500mm (Internal clear dimension: 2175mm)
Extended Product:

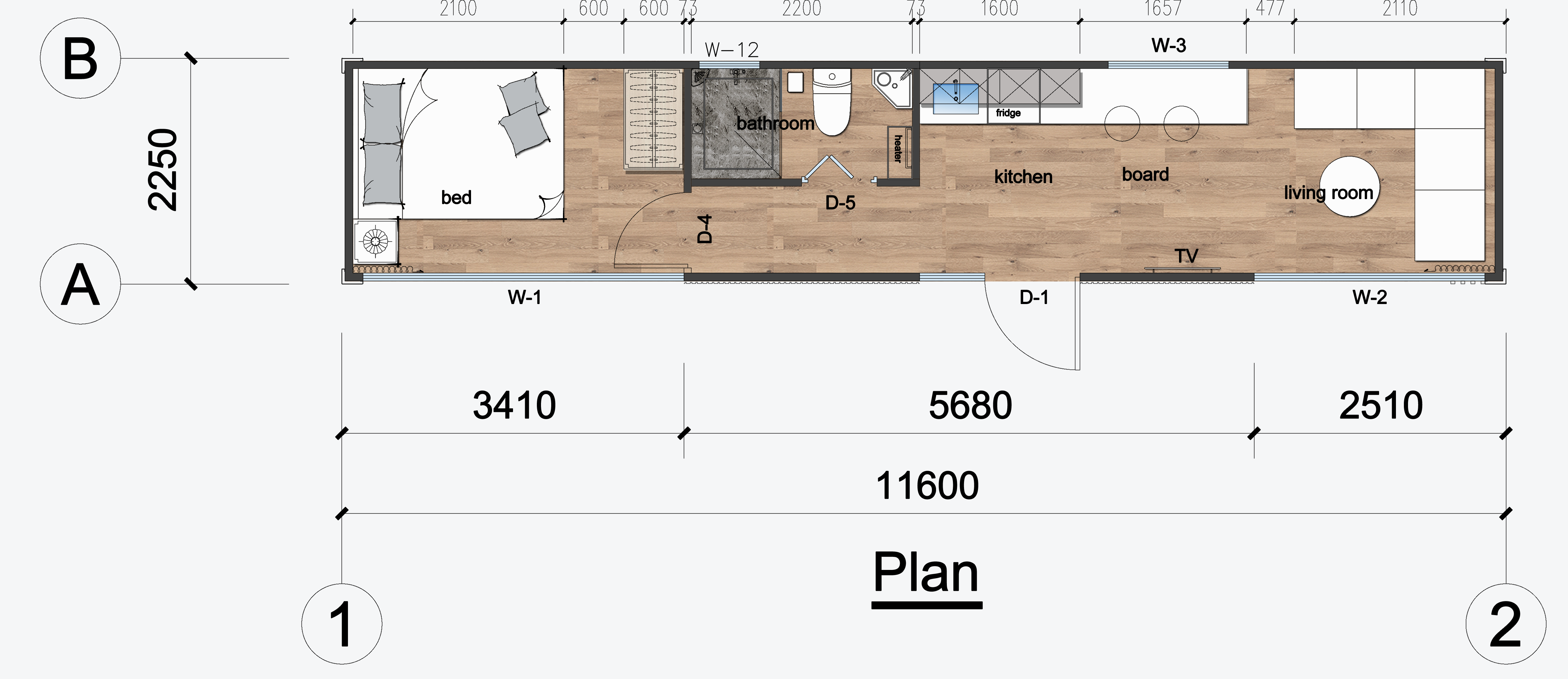

Unit Length: 11600mm (Internal clear dimension: 11450mm)
Unit Width: 2250mm (Internal clear dimension: 2090mm)
Unit Height: 2500mm (Internal clear dimension: 2175mm)
Design Parameters
Roof Live Load: 1.0 KN/㎡
Floor Live Load: 2.0 KN/㎡
Wind Load: 0.5 KN/㎡
Frame
Galvanized cold-rolled steel sections, factory prefabricated
Housing Insulation
Roof Insulation: 100mm glass wool
Floor Insulation: 100mm glass wool
Ceiling
Living area: Bamboo-wood fiberboard
Bathroom: Stone-plastic wall panel
Flooring
Flooring: SPC click flooring
Substrate: Cement fiberboard
Bottom board: Corrugated sheet
Water supply and electrical system
Factory prefabricated plumbing and electrical conduits
